If you are new to music theory — or returning after a long break — the next few sections walk through the ideas that the Circle of Fifths Auto app puts at your fingertips. The goal is not academic completeness, but enough working knowledge to actually use what you see on screen when you sit down with your instrument.
1. Why the Circle of Fifths is the map of Western music

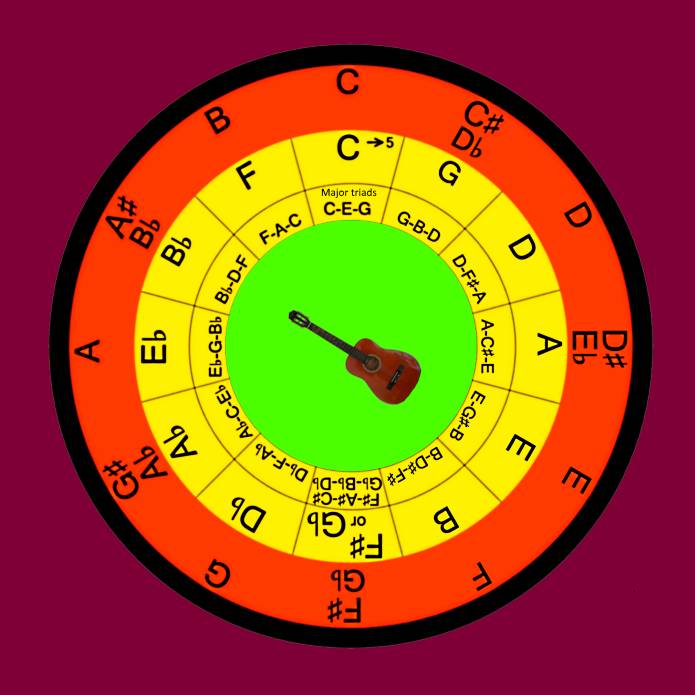

The circle is a way of arranging the twelve pitches of equal temperament so that each step around the circle is exactly a perfect fifth (seven semitones). Start on C, count up seven semitones and you land on G. Repeat from G and you reach D, then A, E, B, F♯, and so on until you come back to C twelve steps later. That single rule organises a surprising amount of practical knowledge:
- Key signatures appear in order: each step clockwise adds one sharp, each step counter-clockwise adds one flat. C major has zero accidentals, G major has one sharp (F♯), D major has two (F♯, C♯), and so on.
- Closely related keys sit right next to each other. A song in C major can borrow chords from G major (one fifth up) or F major (one fifth down) and still sound coherent — their scales differ by only a single note.
- Modulations across the circle feel further away. A leap from C major to F♯ major (six fifths apart, on the opposite side of the circle) is dramatic on purpose; that distance is what makes it sound bold.
2. Major and minor — the same notes, a different feeling
Every major key shares its seven notes with a single minor key called its relative minor. In the app, the relative minor sits on the inner ring directly aligned with its major partner on the outer ring. C major and A minor share the same key signature (no sharps, no flats). The difference is which note you treat as home: starting and ending on C produces the familiar bright major sound; centering everything around A instead makes the same seven notes feel introspective and minor.
This is why a great deal of pop and rock songwriting moves between the two without ever changing key signature. Once you understand the relative-minor pairing, switching from a verse in A minor to a chorus in C major is a single mental hop, not a modulation.
3. Diatonic chords — the seven chords that belong to a key

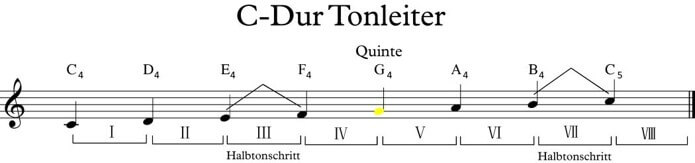

If you stack thirds on each note of a major scale, you get seven chords that all sit naturally inside that key. In C major they are:
- I · C major · tonic, the home chord
- ii · D minor · predominant, sets up motion
- iii · E minor · colour chord, often substitutes for I
- IV · F major · subdominant, the lift
- V · G major · dominant, pulls strongly back to I
- vi · A minor · relative minor, the most common substitute for I
- vii° · B diminished · tense, leads to I
The classic four-chord progressions you hear in countless songs — I–V–vi–IV, I–vi–IV–V, ii–V–I — are simply walks through these seven chords. Long-pressing a key in the app shows you exactly these seven, ready to copy into a sketch.
4. Reading the interval ratios on the circle

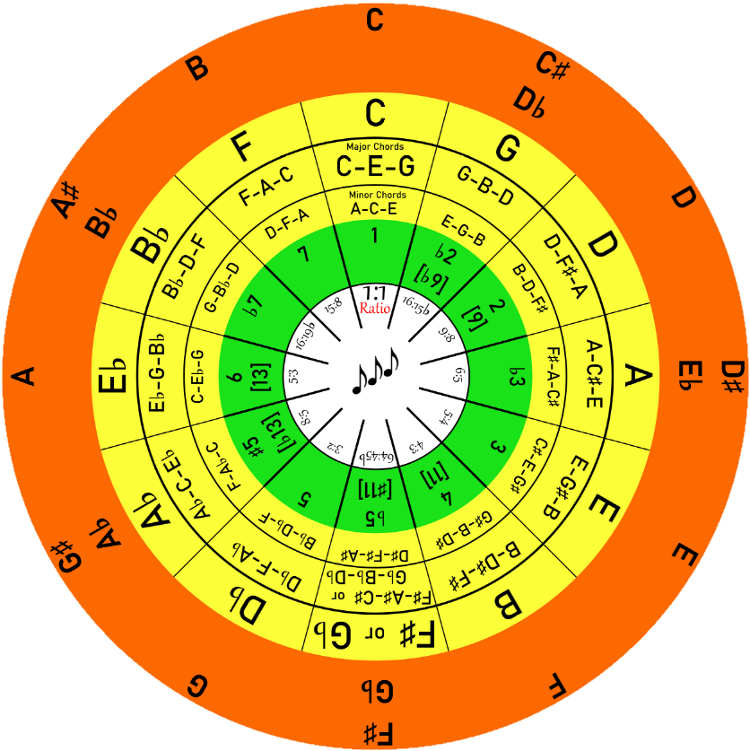

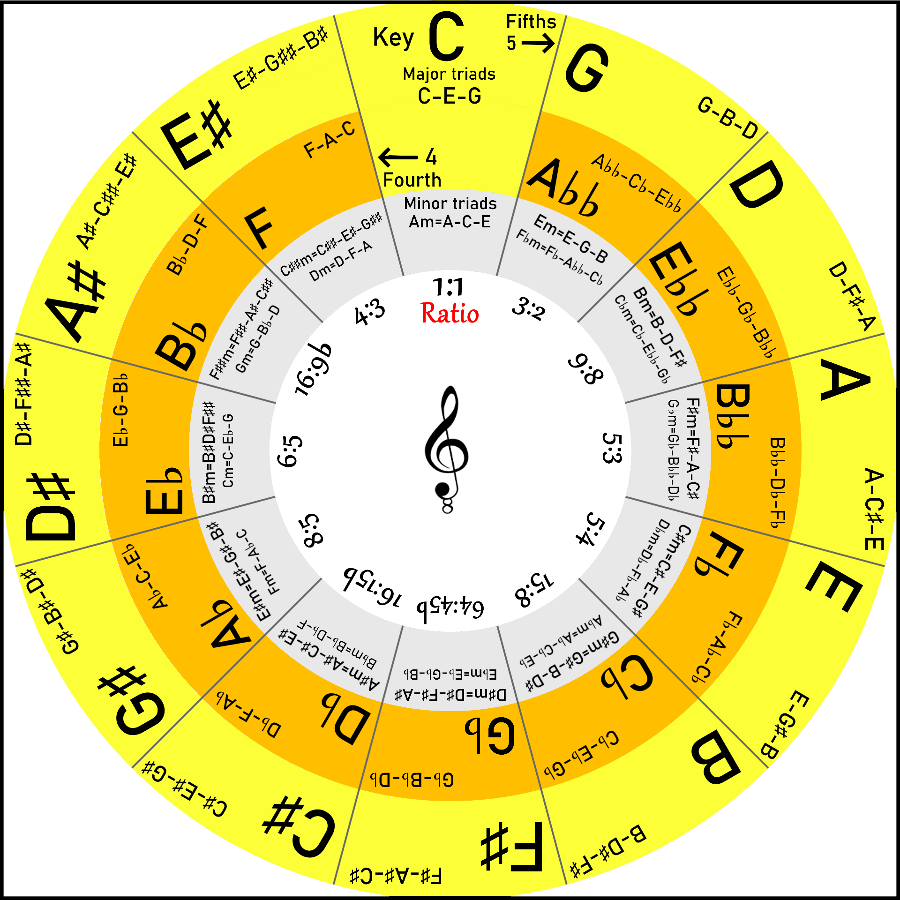

The numbers like 3:2, 4:3 and 5:4 printed on the inner ring are just-intonation frequency ratios. They describe the simplest possible relationship between two pitches and explain why some intervals sound consonant and others restless:
- 1:1 unison — the same pitch
- 2:1 octave — one pitch vibrates twice as fast as the other
- 3:2 perfect fifth — the foundation of the entire circle
- 4:3 perfect fourth
- 5:4 major third · 6:5 minor third
- 9:8 major second · 16:15 minor second
The simpler the ratio, the more the two waveforms line up in time, and the more our ear hears them as belonging together. The animated waveforms in the app make this visible: a 3:2 fifth produces a clean, repeating pattern; a 16:15 minor second produces visible interference. You hear what you see.
5. Chord types in plain language
The chord builder covers more than thirty types. They sound complicated when written out (C13♯11, anyone?) but break down into a small number of building blocks:
- Triads are three-note chords: major (C–E–G), minor (C–E♭–G), diminished (C–E♭–G♭), augmented (C–E–G♯).
- Seventh chords add the seventh note above the root, producing the rich sound of jazz and blues: Cmaj7, C7, Cm7, Cm7♭5 and so on.
- Sus chords replace the third with the second or fourth, removing the major/minor quality and creating tension: Csus2, Csus4.
- Add chords add a note without stacking through the seventh: Cadd9 = C major plus a D on top.
- Extended chords stack ninths, elevenths and thirteenths on top of the seventh for full jazz colours.
- Altered chords sharpen or flatten one of those upper notes (♯11, ♭13) to create dominant tension.
Once you recognise the pattern, a chord symbol like Cm9 stops looking like a code and becomes a recipe: a Cm7 with a D on top.
6. Tuners, the YIN algorithm and what «cents» mean
A guitar tuner has one job: tell you, in real time, how far the note you just played is from the pitch you wanted. The integrated tuner in the app uses the YIN algorithm, a pitch-detection method designed specifically for monophonic instruments. It compares the audio signal to slightly delayed copies of itself and finds the delay at which they line up best — that delay is the period of the fundamental frequency. The advantage over simple FFT-based tuners is that YIN handles vibrato, slight bending and overtone-rich plucked strings far more cleanly.
The deviation from the target pitch is shown in cents: 100 cents make one semitone, so 50 cents is the boundary between two adjacent notes. Most ears begin to hear an instrument as «out of tune» somewhere around 5–10 cents of deviation. Trained ears notice less. With practice and the visual feedback of the tuner, you learn to feel where in-tune actually lives on your fretboard.
7. The metronome is a practice instrument, not a stopwatch
Most beginners use a metronome to play at a tempo. Better players use it to practice against a tempo. A few habits that pay off quickly:
- Start a new piece at a tempo where every note is clean, even if that means half the target tempo. Speed builds on accuracy, never the other way around.
- Move the click to beats 2 and 4 instead of every beat. You will feel the groove instead of being dragged by it.
- Practice with the click only on the downbeat of every other bar. Your internal time is what fills the gap, and that is the thing worth training.
- Cycle through 2/4, 3/4, 4/4 and 6/8 on the same exercise. Each time signature stresses different notes and exposes different weaknesses.
The visual pendulum in the app is there for exactly that purpose: when you stop hearing the click and start seeing it, you have internalised the pulse.
8. Putting it together — a practice loop
A productive twenty-minute session with the app might look like this: tune the instrument with the chromatic tuner (one minute); pick a key on the circle and review its diatonic chords (two minutes); play through the scale on the staff slowly, naming each scale degree out loud (five minutes); try one of the suggested progressions in two voicings, easy and barre (seven minutes); finish by improvising over the same progression with the metronome on beats 2 and 4 (five minutes). Repeat this loop on a different key the next day, walking around the circle one fifth at a time. In twelve days you have practised every key on the instrument.
